Line/Bar chart

Before you begin, verify that the dataset is created and uploaded in Dataset Menu bar.

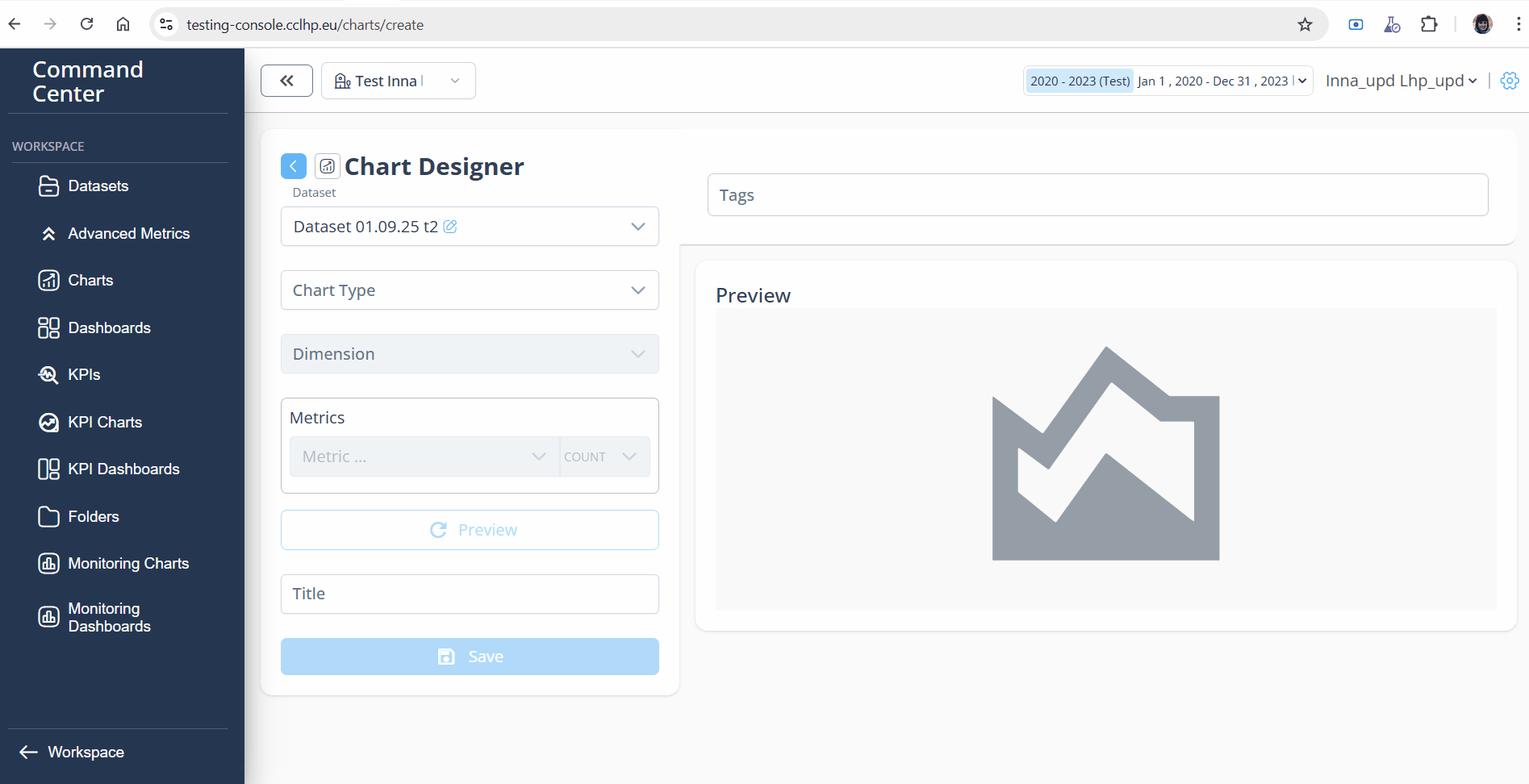

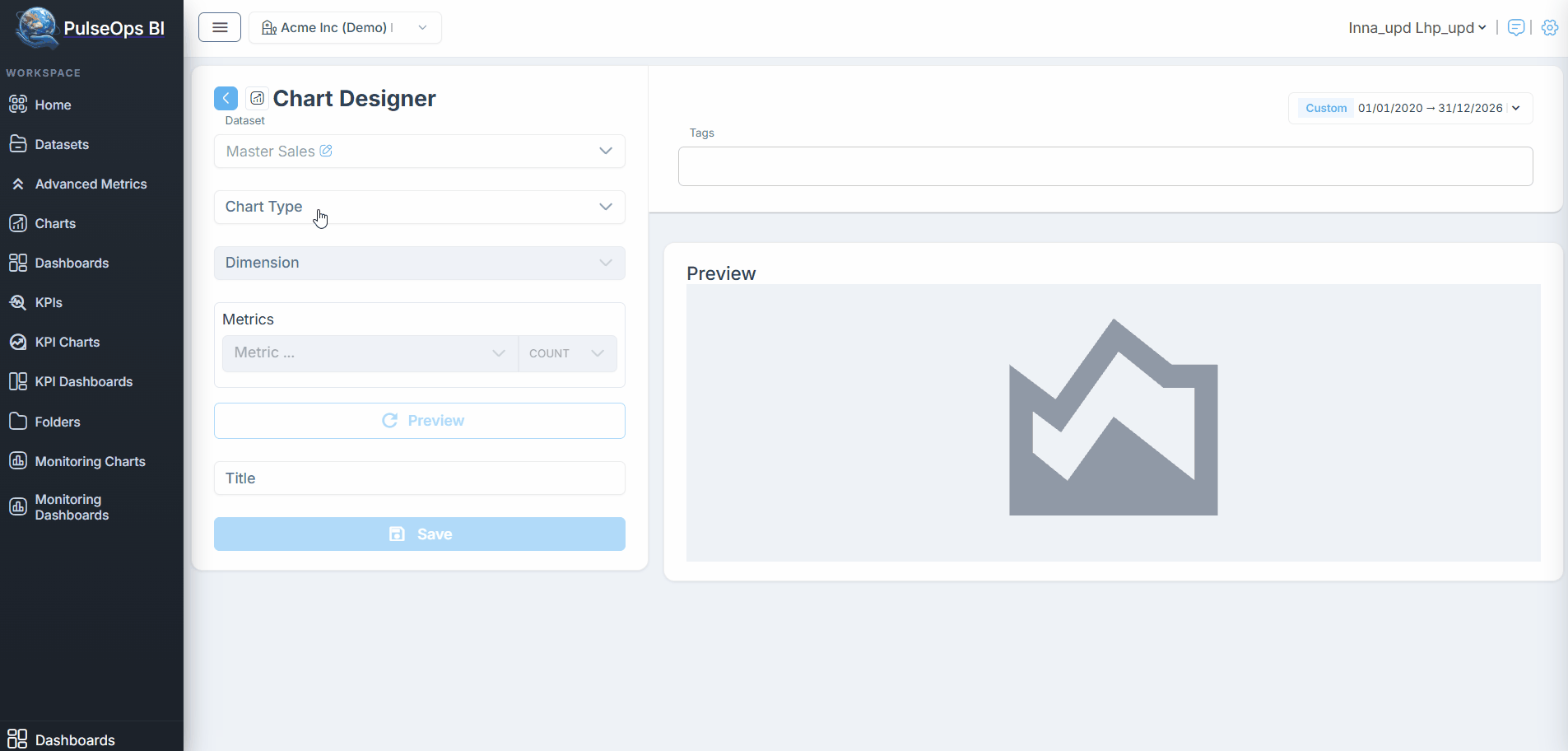

1. Log in Command Center Console as Admin/SuperAdmin
2. From the Menu bar select Charts
3. Click on + New Chart button
4. In Datasets dropdown, select a dataset

5. In Chart type dropdown, choose Line/Bar
6. In Dimension field, choose dimension
7. In Metrics field, select any metric for Line
8. Choose an aggregation for chosen metric
9. In Metrics field, select any metric for Column
10. Choose an aggregation for chosen metric
11. 15. In Title field, insert title of Line/Bar Chart
12. Select Dimension Aggregation by Days, Weeks, Months, Quarters, Years
13. In Tags field, enter any tag and press "Enter" button
14. Click Line/Bar Preview button
15. Click Save button
16. Created Line/Bar Chart is in Charts > Charts Library
