KPI Line Bar

Before you begin, verify that the KPI is created

1. Log in to PulseOps BI as Admin/SuperAdmin
2. From the Menu bar select KPI Charts
3. Click + New KPI Chart button
4. In KPI field, select the KPI of interest
5. In Chart type dropdown, choose Line
6. In Periods displayed choose the number of periods to be displayed in the chart
7. Select periodicity in Temporary periodicity dropdown
8. In the Observing field, select the date up to which KPI data should be displayed.
9. Click Preview button
10. In Title field, insert title of the the KPI chart
11. In Tags field, enter any tag and press "Enter" button
12. Click Save button

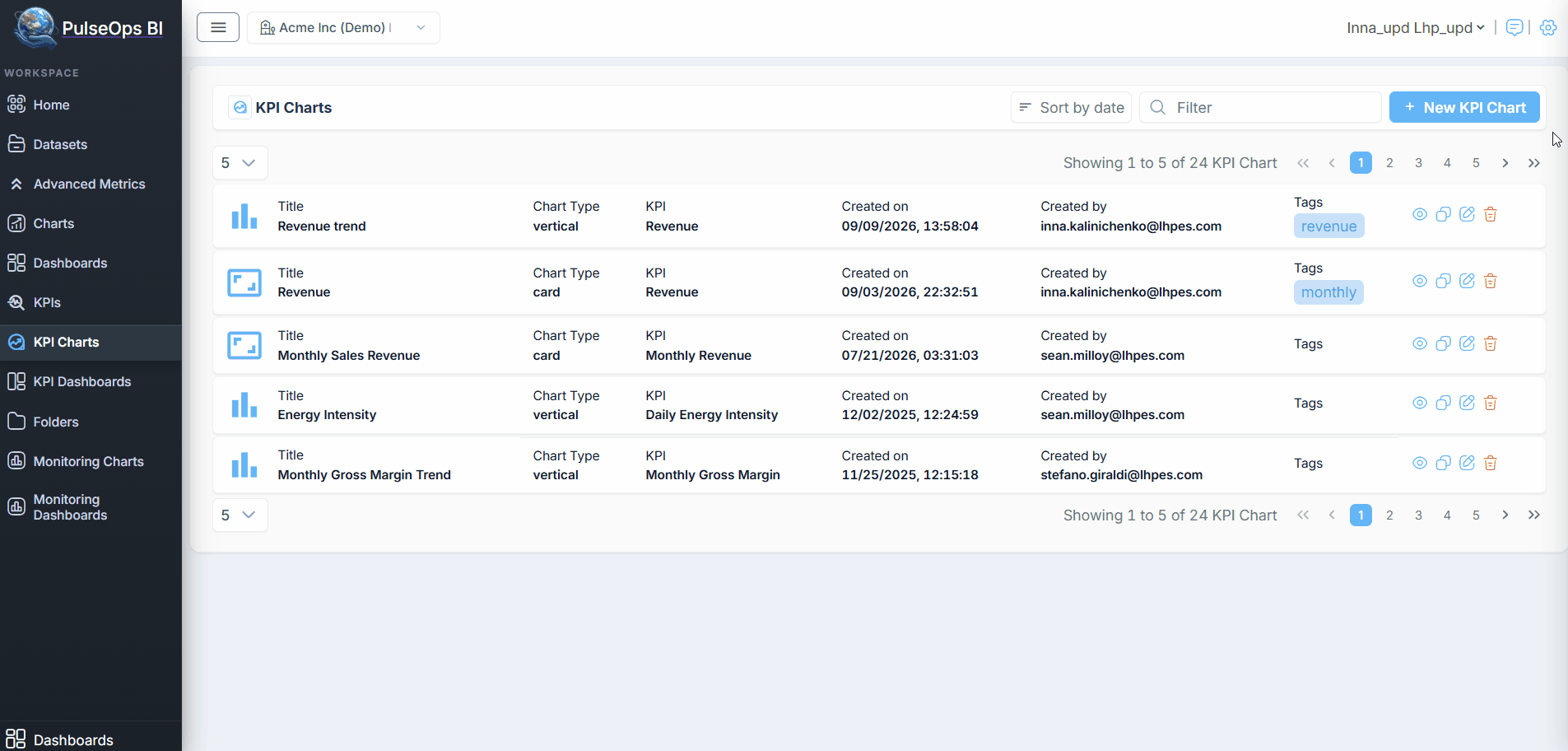

13. Created KPI Line chart is displayed in KPI Charts > KPI Charts list

Note: The selected date determines the end date of the displayed KPI data. Only data available up to and including the selected date is displayed.
