Table chart

Before you begin, verify that the dataset is created and uploaded in Dataset Menu bar.

1. Log in Command Center Console as Admin/SuperAdmin

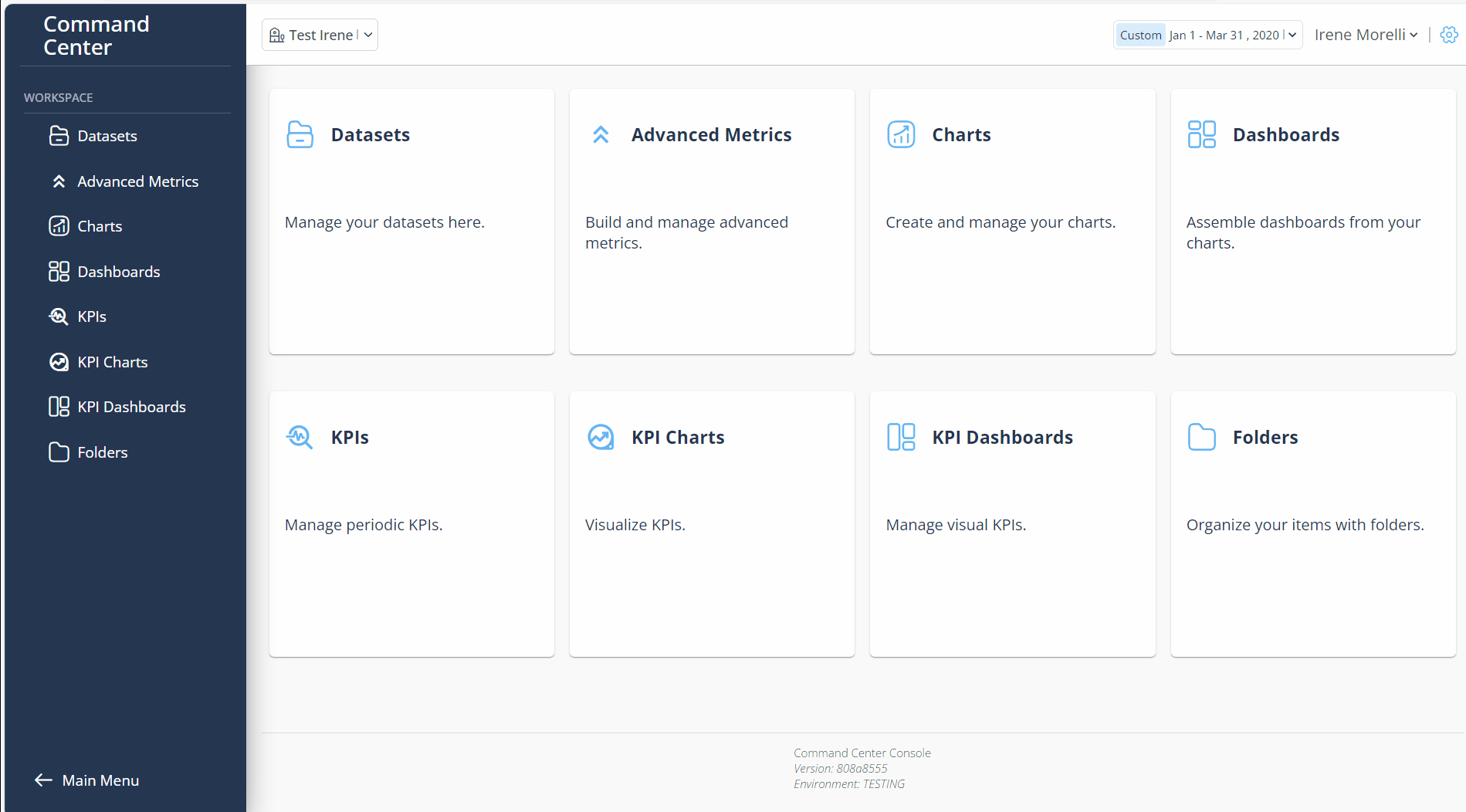

2. From the Menu bar select Charts

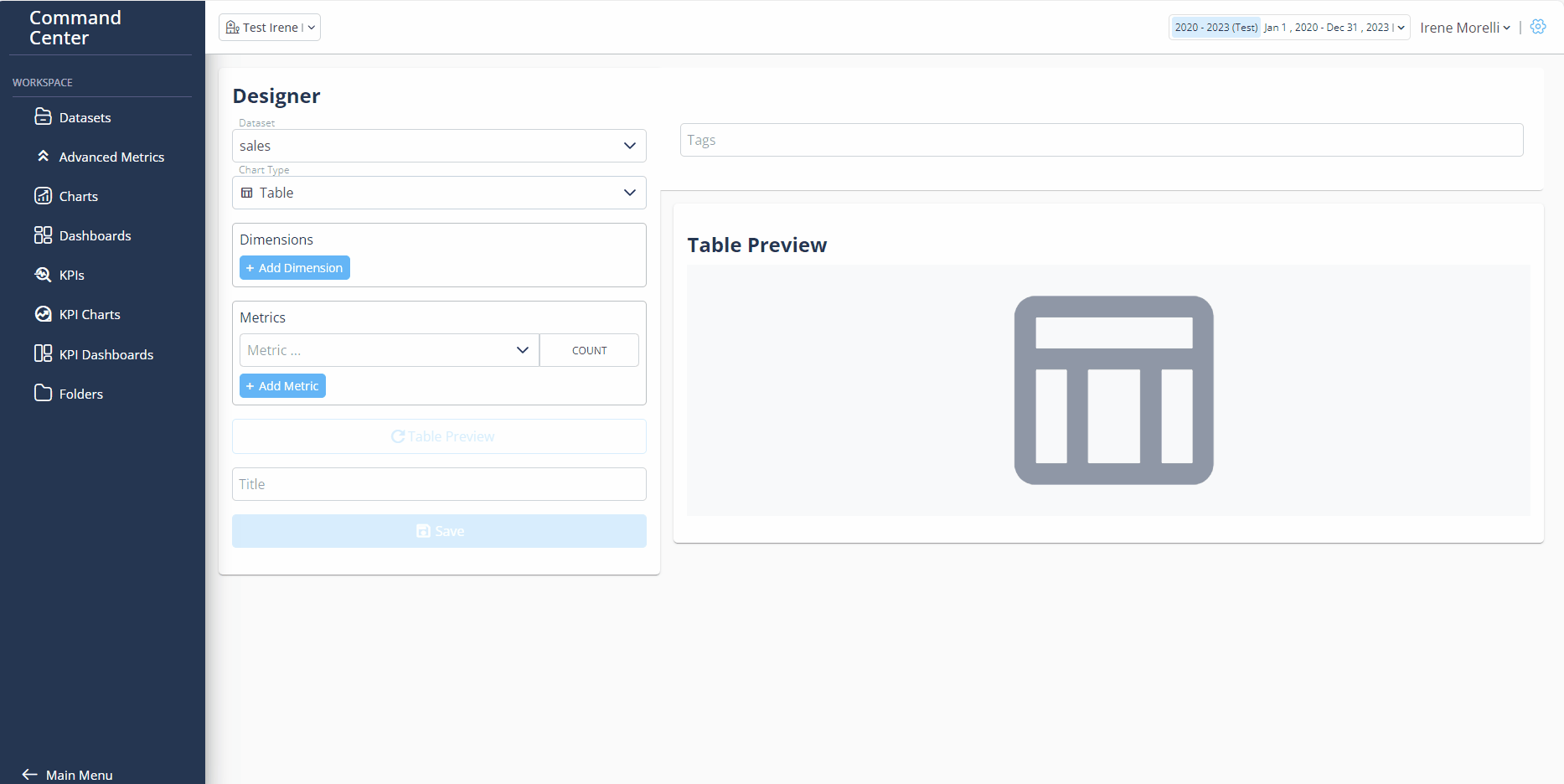

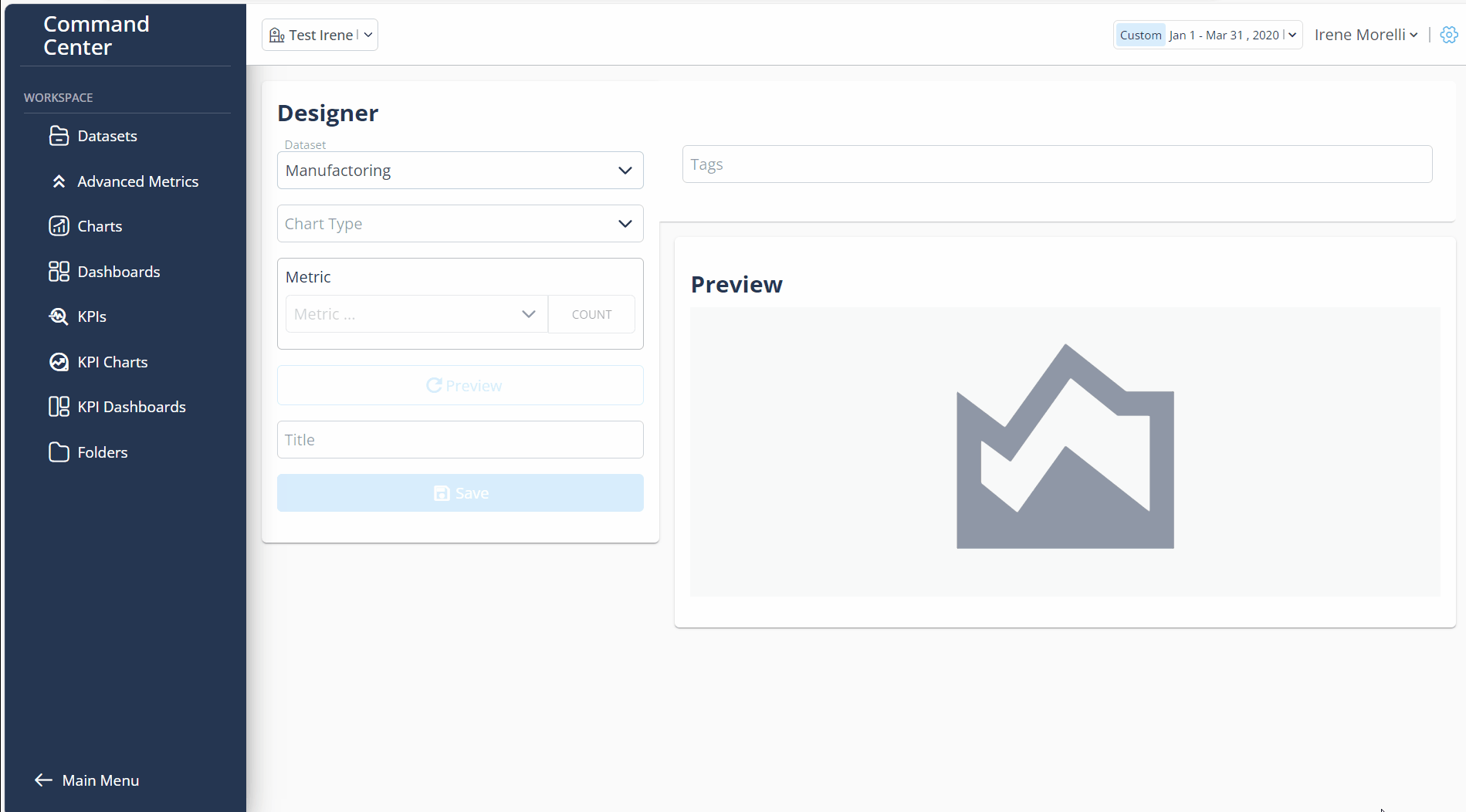

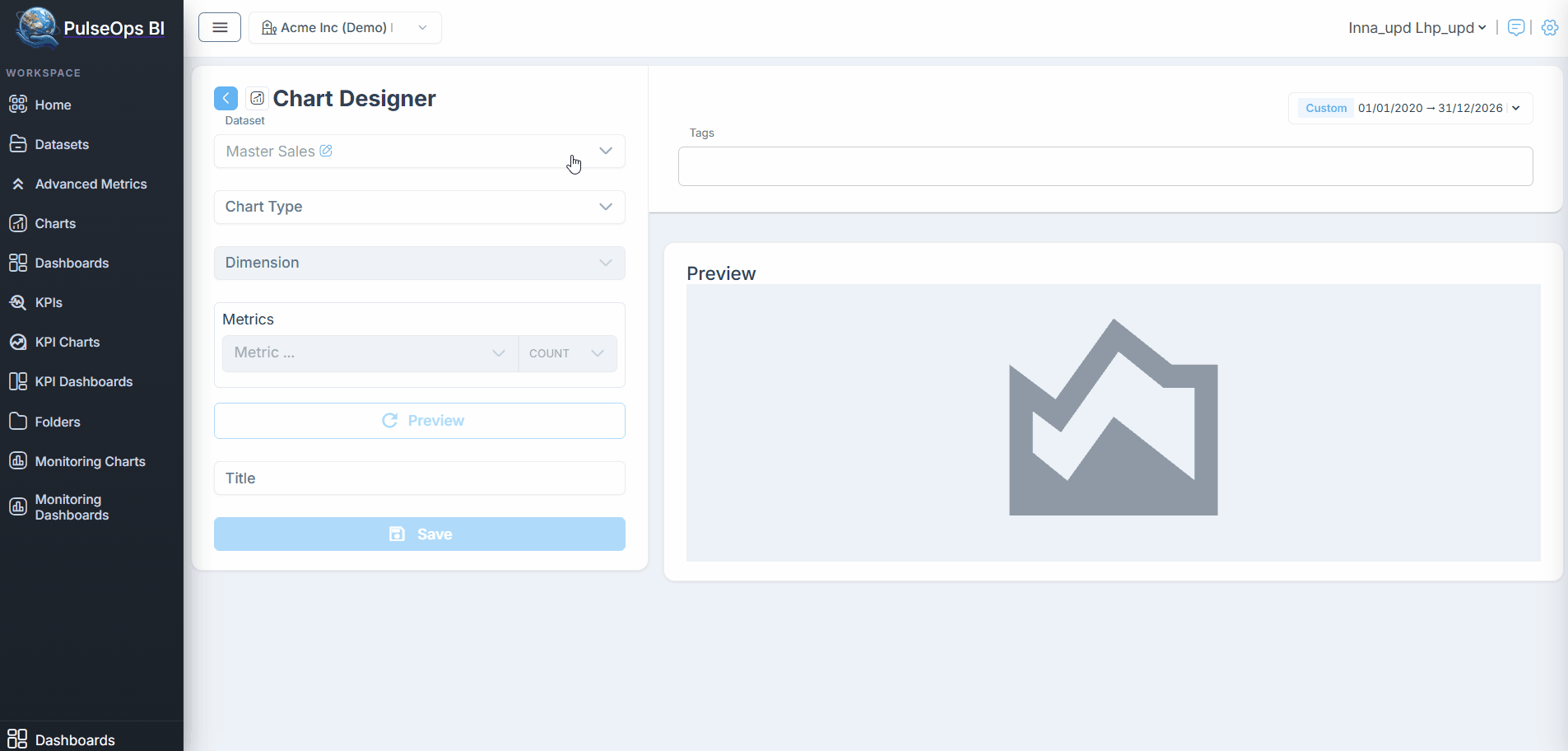

3. Click on + New Chart button
4. In Datasets dropdown, select a dataset

5. In Chart type dropdown, choose Table
6. In Dimension field, choose dimension
7. In Metric field, select any metric
8. Choose an aggregation for chosen metric
9. Click + Add Metric to add additional metric
   Select an aggregation for chosen metric
10. In Tags field, enter any tag and press "Enter" button
11. Click Table Preview button
12. In Title field, insert title of Table
13. Click Save button
14. Created Table is in Charts > Charts Library

Additional feautures

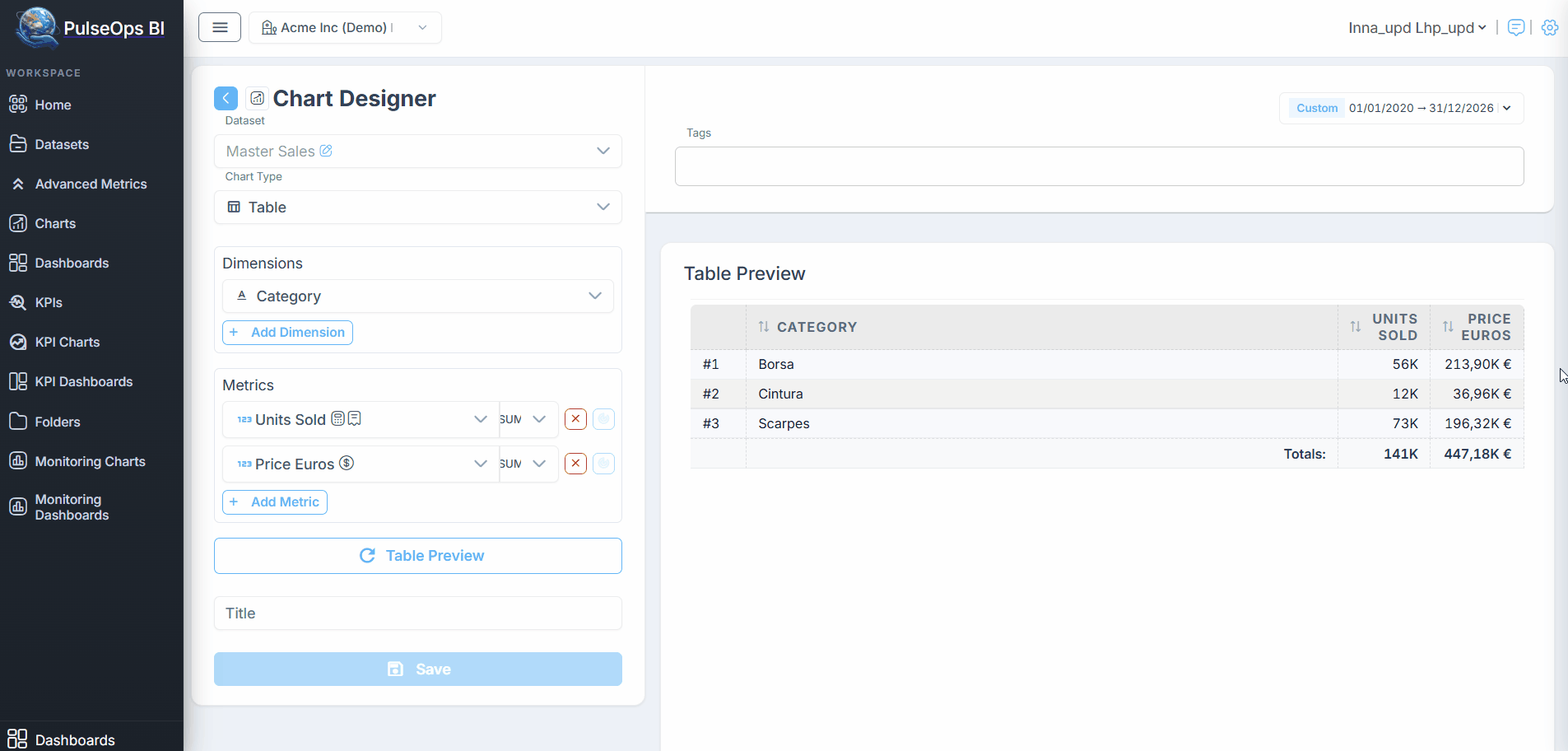

• Double Dimension selection:

  1. In Dimension field, choose dimension
  2. Click on + Add Dimension to add the second dimension
  3. Click on the x button to remove it

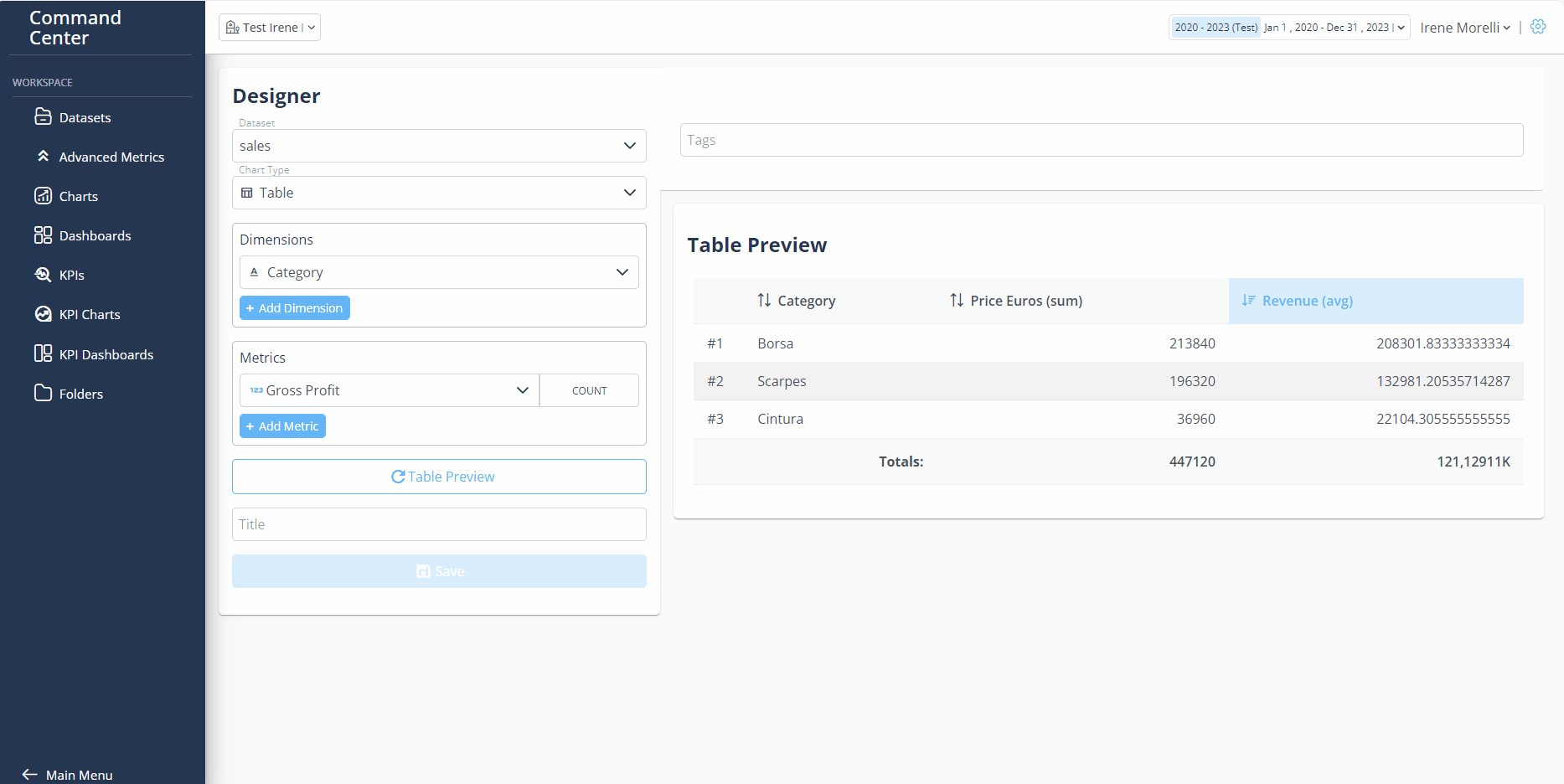

• Multiple Metric selection.

  1. In Metric field, choose a metric
  2. Click on + Add Metric to add another dimension
  3. Click on the x button to remove it

Note: Can be add as many metrics as you desire, also with different aggregation function.

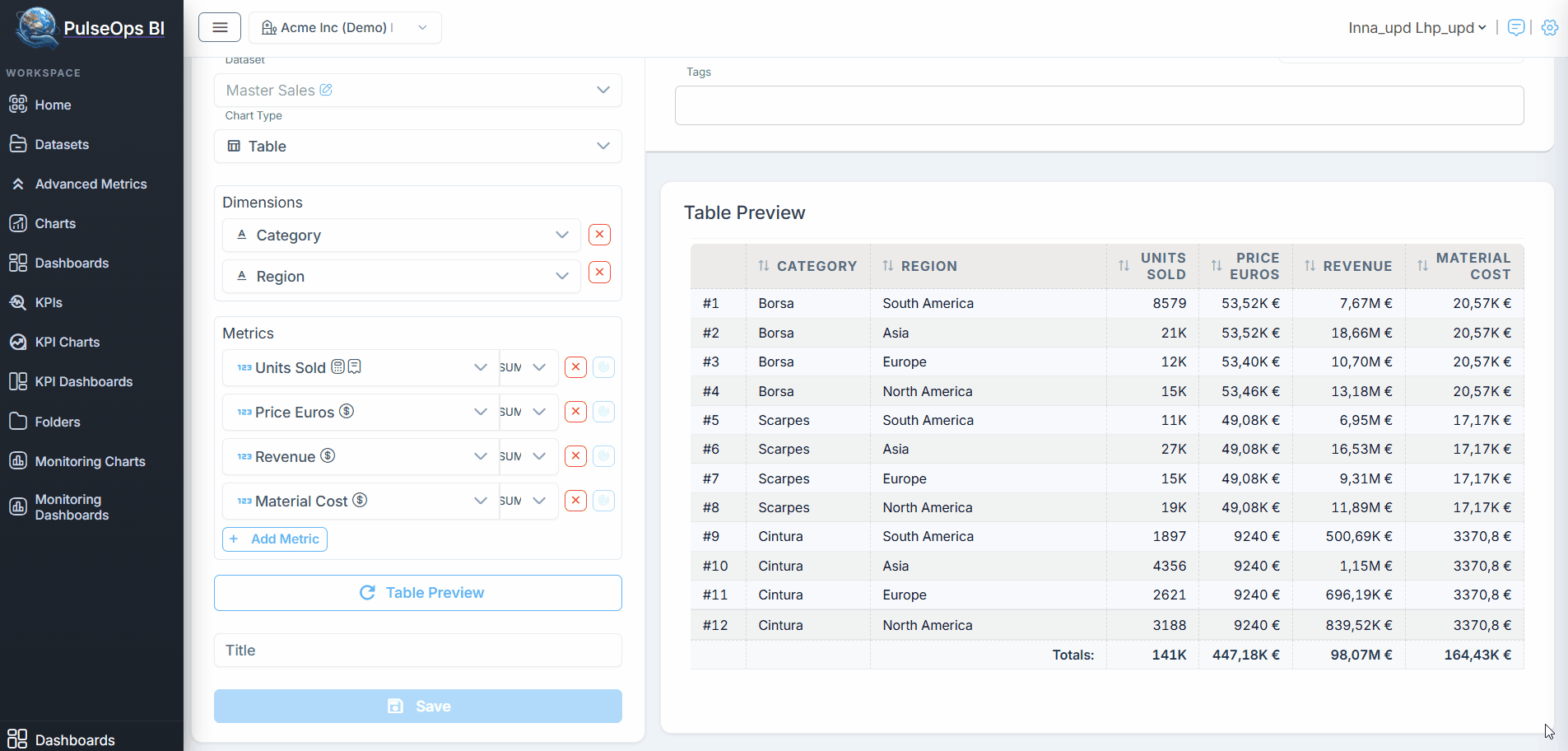

Sort Values

The Command Center allows you to sort the values within the chart, either in ascending or descending order.

1. In the Dimension field, choose one or more dimensions other than the timestamp
2. In the Metric field, select one or more metrics
3. Next to the filed names
   the Sort button appears
   Clicking once will arrange the values in ascending order Clicking twice will arrange them in descending order

INFO

Applying the filter on a dimension/metric will reset the sorting in the other columns.
